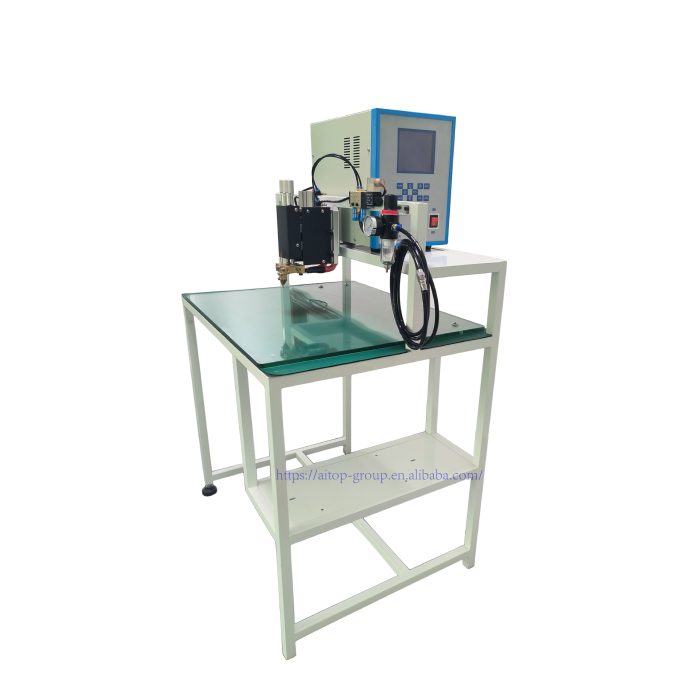

Semi-automatic spot welding machine
220V/380v 21700 18650 Spot Welding Machine For Lithium Ion Battery Pack Manual Spot Welding Machine
Beschreibung
Product Features:
- Microcomputer control, large LCD screen display, graphical display of current working status, Chinese comment
- Digitize the welding parameters, the keyboard operation is clear and clear, convenient and fast
- Welding voltage locking technology to prevent grid pressure fluctuations from affecting welding current
- The welding pulse width is adjustable, the welding spatter is small, and the solder joints are not discolored.
- Can realize single pulse and double pulse and multi pulse welding
- Can store 10 welding specifications
- With two-stage current monitoring and comparison function, the current abnormal sound and light alarm, effectively prevent the occurrence of false welding phenomenon
- With 5-digit counter, calculate the number of successful welding, and also set the counting alarm, prompting to repair the welding pin
- With fault self-diagnosis function, display corresponding fault points, convenient for maintenance
| Technical Parameters | |
| Power supply: | AC 220V/380V??10% 50Hz??2Hz |
| Air pressure: | 0.5-0.6Mpa |
| Nickel thickness | 0.08-0.3mm |
| Machine weight: | 100KG |
| Dimensions: | 350L x 180W x 280H (mm) |
| Storage capacitor: | 9000uf |
| Transformer output maximum power: | 25 KVA |
| Output maximum short circuit current: | 5000A OPTION 8000A/10000A |
| Pre-welding voltage: | 80.0V-330V adjustable, accuracy 0.5V |
| Welding voltage: | 80.0V-330V adjustable, accuracy 0.5V |
